Polaris Ranger Differential Lock Problems – Your Complete

You’re deep on a muddy trail, the tires start to slip, and you reach for that magic button: the 4WD/differential lock switch. You press it, anticipating the satisfying bite of all four wheels digging in. But instead, you get… nothing. Or maybe a flashing light, a worrying click, or a grinding sound that makes your wallet ache.

It’s a frustrating moment that can stop a great ride in its tracks. You rely on that front locker to conquer the toughest terrain, and when it fails, you’re left spinning your wheels—literally.

Don’t let this common issue sideline your machine. We promise this guide will empower you to tackle one of the most frequent Polaris Ranger Differential Lock Problems. We’ll walk you through how the system works, the simple electrical checks you can do in minutes, and the more involved mechanical steps to pinpoint the exact cause, saving you time and money.

Understanding Your Ranger’s Differential Lock: How It Works

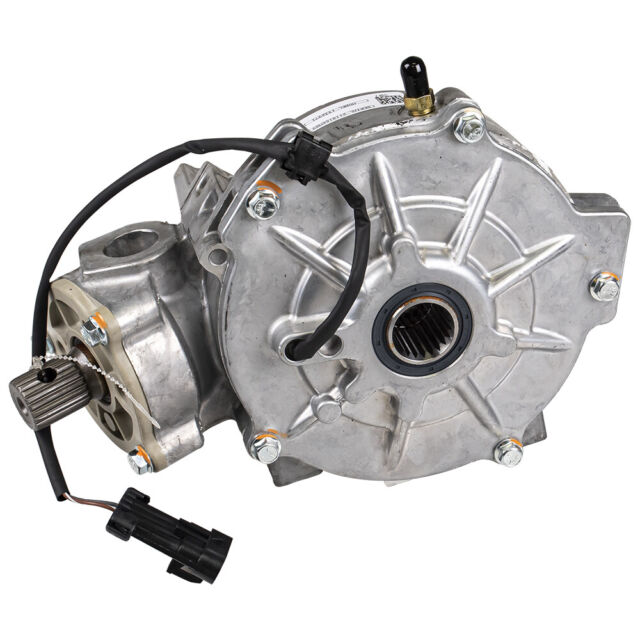

Before you can fix it, you need to know what you’re working with. Your Ranger’s front differential isn’t just a simple set of gears; it’s a smart system designed to give you traction when you need it and easy steering when you don’t.

The magic happens through an electromagnetic coil inside the differential case. When you flip the 4WD switch, your Ranger’s computer sends a 12-volt signal to this coil. This creates a powerful magnetic field that pulls a metal disc, called an armature plate, against the gear housing.

This engagement locks the front differential, forcing both front wheels to turn at the same speed. The result? Maximum, clawing traction to pull you through mud, snow, or over rocks. When you switch back to 2WD or Turf Mode, the power is cut, the magnetic field collapses, and the wheels can once again turn independently.

What About VersaTrac Turf Mode?

Most Polaris Rangers also feature a “Turf Mode.” This is essentially an unlocked rear differential, allowing the rear wheels to turn at different speeds. It’s a fantastic feature that prevents you from tearing up your lawn or leaving black marks on pavement during tight turns. The front differential lock system is separate but is often controlled by the same switch cluster, so understanding its function is part of a complete Polaris Ranger Differential Lock Problems guide.

Essential Tools and Safety Precautions

Jumping into a repair without the right gear is a recipe for frustration and potential injury. Before you start, gather a few key items. This isn’t a massive job, but being prepared makes all the difference.

Your Basic Toolkit:

  • A good quality multimeter (this is non-negotiable for electrical diagnosis)
  • A basic socket and ratchet set (both metric and standard)
  • Wrenches
  • Jack and sturdy jack stands
  • Wheel chocks
  • A drain pan for fluids
  • Nitrile gloves and safety glasses
  • Shop towels or rags
See also  Polaris Ranger Ev Problems – The Ultimate Troubleshooting And Care

Your safety is the top priority. Always work on a level surface, chock the wheels that will remain on the ground, and never get under a vehicle supported only by a jack. Use properly rated jack stands. Finally, it’s a good practice to disconnect the negative battery terminal before working on any electrical components.

Diagnosing Common Polaris Ranger Differential Lock Problems

Let’s get our hands dirty. The key to solving these issues is to work methodically, starting with the easiest and most common culprits first. Don’t immediately assume your differential is shot; more often than not, it’s a simple electrical gremlin.

The Obvious First: Checking Fuses and Switches

Always start here. A five-cent fuse can mimic a thousand-dollar failure. Locate your Ranger’s fuse box (check your owner’s manual for its exact location, often under the hood or dash). Find the fuse labeled for the AWD/differential system and pull it out.

Hold it up to the light. If the thin metal wire inside is broken, you’ve found your problem. Replace it with a fuse of the exact same amperage. If the new fuse blows immediately, you have a short circuit somewhere that needs to be traced.

The “Click of Death”: Testing the Actuator Coil

If the fuse is good, the next step is to listen. With the key on (engine off), have a friend slowly flip the diff lock switch while you listen near the front differential. You should hear a distinct, solid “clunk” or “click” as the coil engages.

If you hear nothing, or a very faint click, it often points to a problem with the coil itself or the power getting to it. This is where your multimeter becomes your best friend. This is one of the most common problems with Polaris Ranger Differential Lock Problems.

Wiring Woes: Tracing the Problem from Switch to Diff

The wiring harness leading to the front differential lives a hard life. It’s exposed to mud, water, and branches that can pull or break wires. Unplug the connector at the differential and inspect it. Look for corrosion (green or white crust), dirt, or bent pins.

With the connector unplugged and the key and 4WD switch on, use your multimeter to check for voltage at the plug. You should see approximately 12 volts. If you don’t have power here, the problem lies upstream—either in the switch itself or in the wiring between the switch and the differential.

Mechanical Mayhem: Inside the Differential

If your electrical checks all pass—you have power at the plug, and the coil’s resistance is in spec (usually around 20-25 ohms, but check your service manual)—then the issue is likely mechanical and inside the differential.

See also  Polaris Ranger Code 84 - Your Complete Diagnostic & Repair Guide

Common internal failures include a broken armature plate, worn-out roller cage, or even broken gear teeth. Another culprit can be contaminated or incorrect fluid. If the fluid is milky (water contamination) or full of metal shavings, it’s a clear sign of internal damage. Addressing this requires draining the fluid and opening the differential, which is a more advanced DIY task.

A Step-by-Step Guide to Testing Your Diff Lock System

Ready for a clear action plan? Follow these steps in order to efficiently diagnose your issue. This is how to Polaris Ranger Differential Lock Problems are solved methodically.

  1. Visual Inspection: Get under the front of the machine. Look at the wiring going to the differential. Is it frayed, pinched, or unplugged? Sometimes the fix is that simple.
  2. Fuse Check: As mentioned, pull the AWD fuse and inspect it. Replace if blown.
  3. Switch Test: Listen for the “clunk” as you or a friend operate the switch. A solid clunk is a good sign the coil is trying to work.
  4. Voltage Test at the Plug: Unplug the two-wire connector at the front differential. Set your multimeter to DC Volts. With the key on and 4WD engaged, touch your multimeter probes to the two pins in the harness-side plug. You should read battery voltage (around 12V). If not, the issue is in the wiring or switch.
  5. Resistance (Ohm) Test of the Coil: Now, test the other side of the plug (the one going into the differential). Set your multimeter to Ohms (Ω). Touch your probes to the two prongs. A healthy coil will typically read between 20 and 25 Ohms. If it reads “OL” (open loop) or 0, the coil is bad and needs replacement.

Best Practices for Differential Lock Care and Maintenance

An ounce of prevention is worth a pound of cure. Following a few Polaris Ranger Differential Lock Problems best practices can save you a lot of headaches down the trail.

The single most important maintenance task is changing your front differential fluid regularly. Use only the Polaris-specified Demand Drive Fluid. Using the wrong fluid can cause the armature plate to swell or fail to engage properly.

Also, make it a habit to engage the differential lock before you get into a sticky situation, and ideally when your wheels are spinning slowly or not at all. Engaging it under high wheel speed can cause harsh, damaging engagement.

Adopting this Polaris Ranger Differential Lock Problems care guide is a sustainable approach. By maintaining your vehicle correctly, you extend the life of expensive components, reduce waste, and ensure proper fluid disposal, which is an eco-friendly Polaris Ranger Differential Lock Problems tip everyone can follow.

See also  Polaris Sportsman 500 Shifting Problems - Your Complete Diagnostic &

Frequently Asked Questions About Polaris Ranger Differential Lock Problems

Why is my Polaris Ranger diff lock light flashing?

A flashing light is the machine’s way of telling you it’s detected a fault. This is most commonly caused by an out-of-spec resistance reading from the coil or an intermittent connection in the wiring. Perform the voltage and ohm tests outlined above to find the source.

Can I drive with the differential lock engaged all the time?

No. The differential lock should only be used when you need maximum traction in loose or slippery conditions. Driving with it engaged on high-traction surfaces like pavement will make steering extremely difficult and can cause excessive wear and tear on your tires, axles, and the differential itself.

What kind of fluid does my Polaris Ranger front differential use?

You must use Polaris Demand Drive Fluid. This is not a place to substitute with generic gear oil. The specific friction modifiers in the Polaris fluid are essential for the proper operation of the electromagnetic clutch system.

How much does it cost to fix a Polaris Ranger differential lock?

The cost varies wildly. If it’s a simple fuse or a wire you can repair yourself, the cost is negligible. A new actuator coil can cost a couple of hundred dollars plus labor. If the entire differential needs to be rebuilt or replaced, you could be looking at a repair bill of $1,000 or more, making DIY diagnosis a huge potential money-saver.

Troubleshooting your Ranger’s differential lock doesn’t have to be intimidating. By starting with the simple electrical checks, you can solve the vast majority of issues with just a few basic tools and a bit of patience. Remember to work safely, be methodical, and don’t be afraid to consult a service manual for your specific model’s specifications.

Now you have the knowledge and a clear plan. Tackle the problem, get your 4WD system working reliably, and get back to conquering the trails with confidence. Happy riding!
